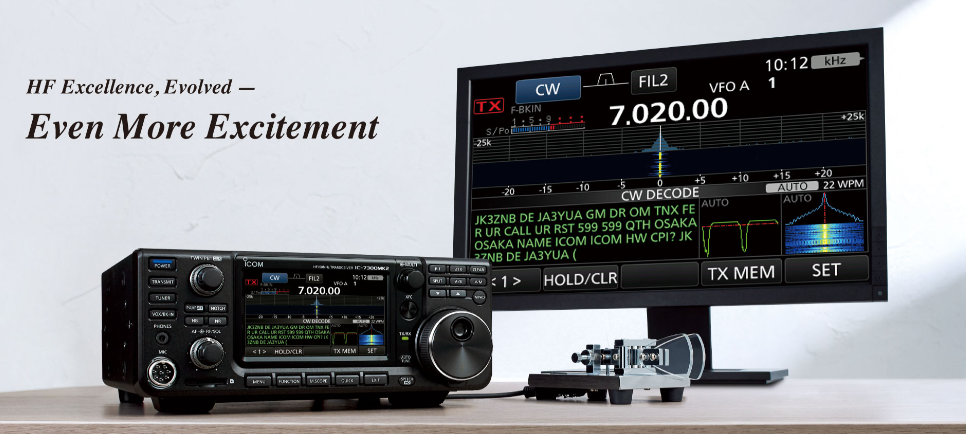

Icom IC-7300MK2 Yeni Model HF+50MHz Sabit Telsiz, Tunerli (İzne tabidir)

Icom IC-7300MK2 Yeni Model HF+50MHz Sabit Telsiz, Tunerli (İzne tabidir) (IC7300MK2)

Marka : ICOM

İndirim Oranı : %5 İndirim

KDV Dahil : $2,268.00

İndirimli : $1,800.00 + KDV

KDV Dahil : 97.416,00 TL

GÖRSELLER VE TEKNİK ÖZELLİKLER İÇİN CIHAZ GÖRSELİNE TIKLAYINIZ

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Kargo Bedava

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

Class-Leading Compact Radio Evolves to the Next Level:

The IC-7300MK2 HF/50/(70) MHz* transceiver is an enhanced version of the highly popular IC-7300, which was Icom's first amateur radio to employ RF direct sampling technology and sold over 100,000 units worldwide. It delivers high-end performance and features in a compact, cost-effective package.

With RMDR improved by more than 12 dB and transmit phase noise reduced by over 12 dB, it delivers even cleaner, more powerful signals. Reduced heat generation ensures stable, long-hour operation — perfect for serious DXers and contesters.

The IC-7300MK2 also adds an external display output (HDMI™ port) and a built-in CW decoder. New connectivity options include a USB Type-C™ port, LAN port, and dedicated receive antenna connectors. The APF (Audio Peak Filter) function further improves CW signal intelligibility. With all these advancements, the IC-7300MK2 redefines what a compact HF transceiver can do.

* 70 MHz available on the Europe Version.

Enhanced Performance:

Improved RMDR and Phase Noise Characteristics

The IC-7300MK2’s RMDR is improved to about 12 dB typical* and transmit Phase Noise characteristics are improved by about 12 dB* compared to the previous model. The superior Phase Noise characteristics reduce noise components in both receive and transmit signals.

* 2 kHz separation at 14.2 MHz, CW, IF BW: 500 Hz.

What is RMDR:

RMDR (Reciprocal Mixing Dynamic Range) is a key indicator of how much receiver sensitivity is degraded by strong nearby signals.

A higher RMDR value means less blocking from adjacent signals. In general, lower LO phase noise results in better RMDR performance.

Enhanced Performance.

Power Saving and Lower Heat Generation for Longer Continuous Operation:

Through component selection and DC power optimization, the IC-7300MK2 reduces heat generation and enables stable operation during extended operating periods, such as contest operation.

Compared to the previous model, the IC-7300MK2 reduces power consumption from 0.9 A to 0.7 A (typical) during RX standby. Furthermore, the fan control has been improved, making fan noise much less noticeable.

New Features:

HDMI™ Port for External Display

External Display Connection

As a first for Icom’s HF/50 MHz radios, the IC-7300MK2 incorporates an HDMI™ port for external display connection. Operating information, such as frequency, scope, waterfall, and menus, can be shown on a large monitor, and audio can also be output through HDMI™ to the display’s speakers.

RX-ANT Connectors for BPF, Preamps and Receiving Antennas

RX Antenna IN/OUT (SMA)

The RX Antenna IN/OUT connectors enable you to take advantage of antenna characteristics for optimized reception, such as avoiding interference and QRN.

External bandpass filters and preamps can also be connected to these connectors.

Simplified Remote Control for RS-BA1

Whether from a remote location within your home QTH, or from a remote location somewhere around the world, the RS-BA1 (Version 2) software enables you to operate your IC-7300MK2*. With the addition of an Ethernet connector, a base station computer is not required. Not only can you control the radio settings and display a spectrum scope with the waterfall, you are able to remotely turn the radio ON or OFF through the Internet.

RTTY and CW decode functions are not supported in the RS-BA1 Control Software.

RS-BA1 Connection

Built-in CW Decoder

CW Decoder

Another first for Icom’s HF/50 MHz radio, the IC-7300MK2 can decode Morse code signals without using a PC or other external equipment*.

The decode settings can be customized to suit various situations and needs, including decode key speed (AUTO, LOCK, KEYSPEED linked), decode filter (AUTO, FIX), and threshold (AUTO, MANUAL).

Decoding accuracy may vary depending on receiving conditions.

USB Type-C™ with Dual COM + Audio

The IC-7300MK2 provides a USB Type-C™ port with dual virtual COM ports and audio IN/OUT.

You can use two applications simultaneously, such as FT8, logging and contest software, with just one USB cable.

CW decode output to the USB port is not supported.

APF (Audio Peak Filter) for CW Signals

The APF improves CW reception by emphasizing a specific audio frequency, making it easier to zero in on a desired signal. The APF level is adjustable from 0 to 6 dB in 1 dB steps.

Real-Time Spectrum Scope

Equipped with a real-time spectrum scope, the IC-7300MK2 delivers sophisticated operation through intuitive touch control with advanced specifications, including resolution, sweep speed, and dynamic range.

While listening to received audio, you can check for clear frequencies, monitor band conditions, and quickly access target signals with simple touch operation.

Real-Time Spectrum Scope Specifications
Scope System	FFT (Fast Fourier Transform)	Waveform Display Area (Vertical axis)	80 dB
Sweep Speed	Max. 30 frames/sec (approx.), Selectable from Slow, Mid or Fast	Reference Level Adjustment	-20 dB ~ +20 dB
Span Width	5 kHz ~ 1000 kHz	Peak Level Hold (Max. Hold)	ON/OFF/Last 10 seconds
Resolution (Number of pixels shown at the 60 dB level, when receiving a signal.)	1 pixel minimum (approximately)	Other Functions	• Average indication • Touch screen operation • VBW (Video Band Width) adjustment

High-Resolution Waterfall Function

The combination of the waterfall function and the real-time spectrum scope assists in maximum receive performance of the IC-7300MK2, and increases QSO opportunities without missing weak signals. The waterfall function shows a change of signal strength over a period of time, and allows you to find weak signals that may not be apparent on the spectrum scope.

Spectrum scope + Waterfall

Audio Scope Function

The audio scope function can be used to observe various AF characteristics such as microphone compressor level, filter width, notch filter width and keying waveform in the CW mode.

Either the transmit or receive audio can be displayed on the FFT scope with the waterfall function and the oscilloscope.

FFT scope/Oscilloscope + Waterfall

Automatic Contest Serial Numbering

Contest Serial Numbering Example

This function is powerful in CW and RTTY contests. Each time the pre-programmed memory is transmitted, the serial number is automatically counted from 001.

The serial number can be set in multiple locations to ensure that the contest number is reliably copied.

Advanced RF Direct Sampling

The IC-7300MK2 utilizes RF direct sampling technology that directly converts RF signals to digital data and processes them within an advanced Field-Programmable Gate Array (FPGA). This innovative approach dramatically simplifies circuit architecture while delivering exceptional performance that sets new standards in amateur radio.

Advanced “IP+” Technology

The “IP+” function significantly enhances intermodulation distortion (IMD) performance.

When you receive strong interference adjacent to your intended signal, it intelligently optimizes the AD converter to minimize signal distortion and ensure clean reception.

15 High-Performance Discrete Bandpass Filters

Band-pass Filters:

Incorporating 15 discrete RF bandpass filters with high-Q factor coils, the IC-7300MK2 delivers exceptional out-of-band interference suppression, comparable to premium-class transceivers.

Built-in Automatic Antenna Tuner

A built-in automatic antenna tuner recalls optimal settings in its memory for rapid band switching.

The Enforced Tuning function* enables operation with a wide range of non-resonant antennas, providing emergency communication capability.

Do not use the Enforced Tuning function except in case of an emergency. Transmission power may be reduced.

Multi-Dial Knob for Enhanced Operation

The intuitive combination of multi-dial knob and touch screen delivers fast, efficient control. Simply press the multi-dial knob to display the menu on the right side of the screen,

touch to select your desired function, then rotate the knob for adjustment.

Large Touch Screen Color IPS LCD

The large 4.3 inch color IPS touch LCD offers intuitive operation. Using the software keypad of the touch screen, you can easily set various functions, and edit memory contents.

Touch Sreen Interface

Band Stacking Register

Multi-function Meter

Menu Screen

One-Touch FT8 Mode Preset

Experience simplified FT8 operation with one-touch preset switching. Simply select [FT8] from the preset menu to automatically configure all necessary settings, or choose [Normal] to instantly return to conventional operation. Presets 3 to 5 are user-programmable, ensuring compatibility with future digital modes.

Superior Sound Quality

A high-performance speaker unit with large magnet is housed in dedicated acoustic space for exceptional clarity, and minimal distortion, at any volume.

Aluminum Die-cast Chassis

Speaker Unit

SD Memory Card Slot for Data Storage

SD Memory Card Slot
(The SD card is not included.)

The IC-7300MK2 stores various data on SD cards, including communication recordings, voice memories,

RTTY decode logs, and screen captures. Personal settings can also be saved, enabling instant configuration switching between operators with a simple card exchange.

Other Features:

Multi-function meter (Po, SWR, ALC, COMP, VD and ID)
101 memory channels (99 regular, 2 scan edges)
CW functions: Full break-in, CW reverse, CW auto tuning
Not: Cıhaz fonksiyonlarına ait görsel ve videoları aşağıdaki Icom Japan sitesinden inceleyebilir, izleyebilirsiniz.
https://www.icomjapan.com/lineup/products/IC-7300MK2/
SADECE KEGM AMATÖR TELSİZ BELGESİ SAHİPLERİNE VE BTK/KEGM'den

İZİN ALMIŞ KURUM VE KURULUŞLARA SATILIR. SİPARİŞ ANINDA GEÇERLİ

SÜRESİ OLAN BELGE veya BTK İZİN YAZISI İBRAZI ŞARTTIR.

Havale ile Ödeme 77.121,00 TL + KDV
