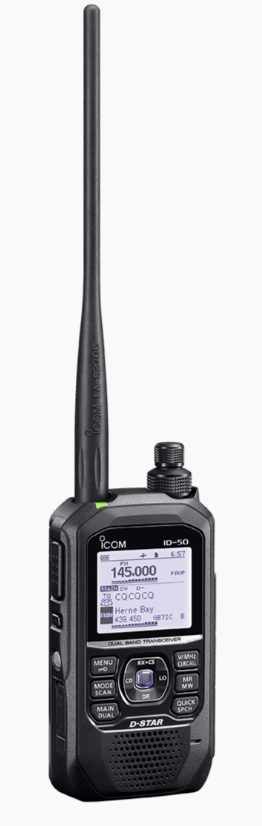

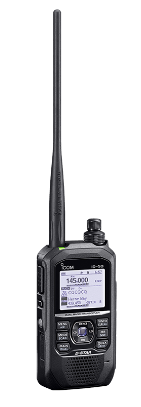

Icom ID-50E Dual Band VHF/UHF D-Star El Telsizi (İzne tabidir) (ID50E)

Marka : ICOM

İndirim Oranı : %4 İndirim

KDV Dahil : $648.00

İndirimli : $520.00 + KDV

KDV Dahil : 28.579,20 TL

AMATÖR TELSİZ BELGESİ İBRAZI İLE SATILIR

Telefonla Sipariş

Tavsiye Et

Yorum Yaz

GENERAL:

Frequency coverage (Unit: MHz)	Version	Transmit	Receiver	Broadcast band
	ID-50E	144~146, 430~440	(A) 108~174, 375~479* (B) 137~174, 375~479*	76.00~108.00
	ID-50E	(A) means A band, (B) means B band. Guaranteed Range: * 144~146, 430~440 MHz
Type of emission		F2D, F3E, F7W
Mode		DV, FM, FM-N, WFM, AM, AM-N
Number of memory channels		500 memory channels, 4 call channels, 25 scan edges, 100 skip channels, 500 broadcast stations, 2500 repeater lists, 300 call signs, and 300 GPS memories
Frequency resolution		5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200 kHz
Operating temperature range		–20℃ ~ +60℃, –4°F ~ +140°F
Frequency stability		±2.5 ppm (–20℃ ~ +60℃ on the basis of 25℃)
Antenna impedance		50 Ω (SMA)
Power supply requirement	Battery pack	7.4 V DC (with BP-271/BP-272)
	Alkaline cells	5.5 V DC (with BP-273)
	External DC	10~16 V DC
Current drain (at 7.4 V DC)	Tx High	Less than 2.5 A
Current drain (at 7.4 V DC)	Rx AF Max.	Less than 400 mA (FM, FM-N) (8 Ω), Less than 450 mA (DV) (8 Ω)
Dimensions (W×H×D) (projections not included)		58.0 × 111.0 × 27.9 mm (main unit) 58.0 × 111.0 × 33.0 mm (with BP-272)
Weight (approximate)		300 g, 10.6 oz (with BP-272 & antenna)

*AM-N mode cannot be received from 225 to 374.995 MHz.

TRANSMITTER:

Modulation system	DV	GMSK reactance modulation
Modulation system	FM, FM-N	FM reactance modulation
Output power		5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W (High, Mid, Low2, Low1, S-low)
Spurious emissions		Less than –60 dBc (High, Mid), Less than –13 dBm (Low2, Low1, S-low)
Max. frequency deviation		Less than ±5.0/2.5 kHz (FM/FM-N)
Ext. Mic impedance		2.2 kΩ

RECEIVER:

Receiver sensitivity (Except amateur bands)
Sensitivity	DV	Less than 0.2 μV (at 1% BER)
Sensitivity	FM, FM-N	Less than 0.18 μV (at 12 dB SINAD)
Selectivity		More than 50 dB (DV, FM-N), More than 55 dB (FM)
Spurious rejection		More than 60 dB
Audio output power	Internal SP	More than 750 mW (8 Ω load)
Audio output power	External SP	More than 200 mW (8 Ω load)
		Frequency range (Unit: MHz)	FM/FM-N/WFM (12 dB SINAD)	AM/AM-N (10 dB S/N)
BC band		76.000~108.000	Less than 1 μV (WFM)	-
A band		108.000~136.991	-	Less than 1 μV
		137.000~142.000	Less than 0.18 μV	Less than 1 μV
		142.005~148.000	Less than 0.18 μV	-
		148.005~174.000	Less than 0.32 μV	-
		375.000~399.995	Less than 0.5 μV	-
		400.000~479.000	Less than 0.32 μV	-
B band		137.000~142.000	Less than 0.18 μV	-
		142.005~148.000	Less than 0.18 μV	-
		148.005~174.000	Less than 0.32 μV	-
		375.000~399.995	Less than 0.5 μV	-
		400.000~479.000	Less than 0.32 μV	-

All stated specifications are subject to change without notice or obligation.

Supplied Accessories:

Battery pack, BP-272

* Supplied accessories may differ depending on the transceiver version.
