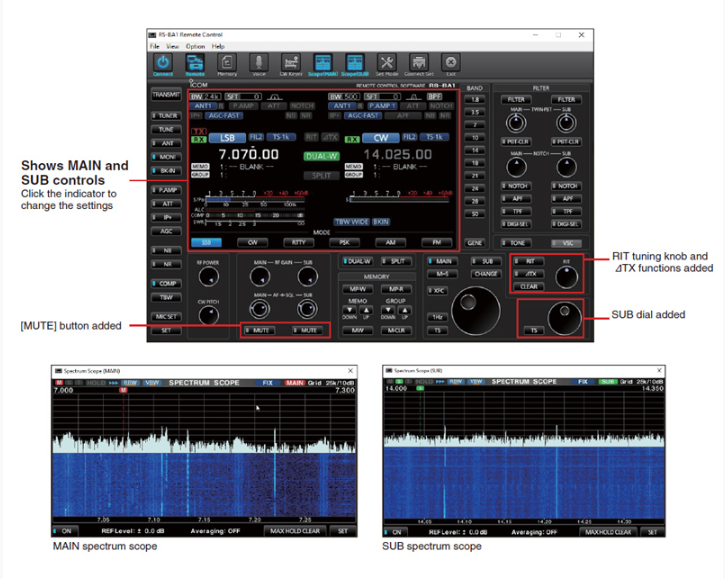

The dualwatch operation and dual spectrum scopes with the waterfall functions* can be used on your remote PC.
MAIN and SUB spectrum scopes can be observed on the RS-BA1 at the same time. Of course, the RS-BA1 can be used with Icom single receiver transceivers.
* The dualwatch and dual spectrum scope functions are only for the IC-7851, IC-7850, IC-7760 and IC-7610.
The spectrum scope functions (single receive) are usable with the IC-7300MK2, IC-7300, IC-9700, IC-705 and IC-905.
Most functions and modes of your transceiver, including interference rejection functions and IF filter settings, can be controlled using the CI-V commands. The following functions are added to the RS-BA1 Version 2.
Panel size can be enlarged (Normal or large size selectable)
- Indicator click operation to change the settings
- RIT and ⊿TX functions
- [MUTE] button
- SUB dial
The RS-BA1 offers real-time operation with low latency, high quality audio.
You can use the transceiver installed in another room using your home network, or even from a remote location over the Internet*.
* A static public IP address or Dynamic DNS is required for the base station (Server) PC, when you configure the remote control system through the Internet.
✓
-
✓ : Function available. - : Function Not available. *Depending on your transceiver, some functions or modes cannot be used, or you need to update the transceiver’s firmware. Please use the latest firmware version of the transceiver.
Specifications
PC (Base station or Remote station) * When only one transceiver and one PC are connected to the Server PC.
Windows 11 (64-bit), Windows 10 (32/64-bit) (Windows on ARM processors is not supported.)
1.8 GHz Processor or better (Multi-core Processor required for Windows 11)
Windows 11 (64 bit): 4 GB or more Windows 10 (32 bit): 2 GB or more Windows 10 (64 bit): 4 GB or more
150 MB or more of available disk space *The Voice Memory or Recording function will require more space.
For the Base station: Upload: 1.2 Mbps Download: 350 kbps, or faster For the Remote station : Upload: 350 kbps Download: 1.2 Mbps, or faster
For the Base station: Upload: 500 kbps Download: 350 kbps, or faster For the Remote station : Upload: 350 kbps Download: 500 kbps, or faster
1024 × 768 pixels (enlargeable)
Speaker and microphone or headset (purchase separately) On-board sound chipset recommended
This is the minimum system requirement to use the RS-BA1 Version 2. Because the system requirements may differ, depending on your PC environment (permanently running software such as antivirus software, peripheral devices, network condition, settings of OS and other software), the operation is not guaranteed. All stated specifications are subject to change without notice or obligation.
Note for original version RS-BA1 users: Free upgrade service from RS-BA1 to RS-BA1 Version 2 is not available. To obtain the new features in the RS-BA1 Version 2, the purchase of a new software package is required.
